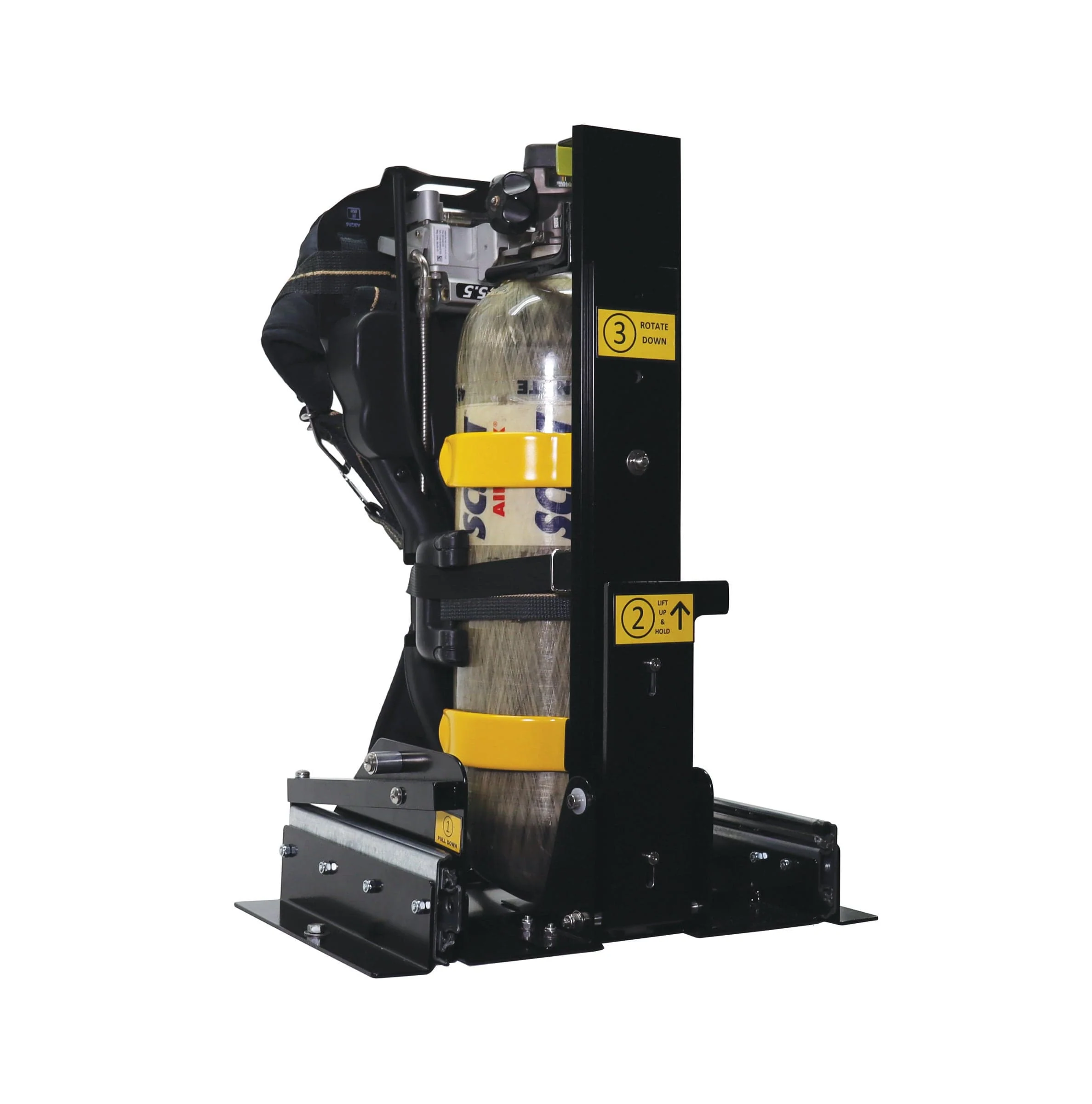

Ziamatic QUIC-SWING Flip-Down 180° SCBA Bracket

Moving SCBAs out of the crew cab? Don compartment stored SCBAs from a comfortable standing position.

Features:

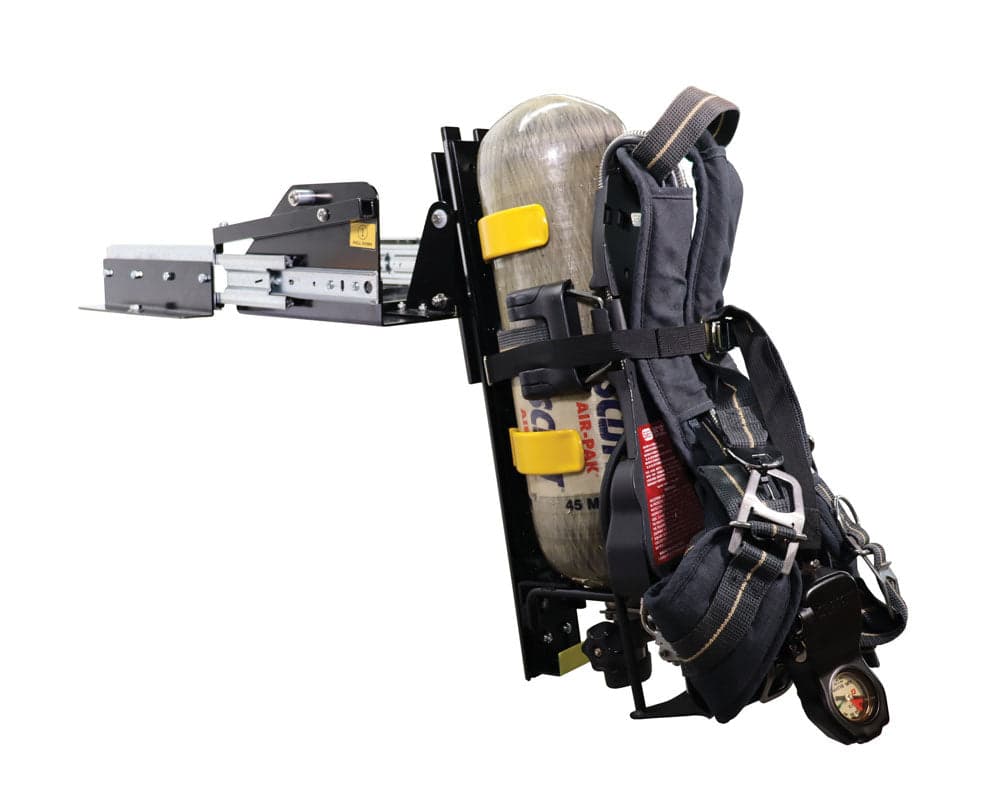

-Bracket slides out over the lip of the compartment, then flips end over end to a convenient height for quick, safe, and easy donning from a comfortable standing position

-Great for storing first attack SCBAs outside of the crew cab and reducing firefighter exposure to harmful carcinogens

-Storing SCBA facing the rear of the compartment helps keep straps and hoses from being caught or damaged by the compartment door

-Two powerful locks, a tray lock and a backplate lock, hold the assembly firmly in place until needed. Spring clips and a positive holding strap keeps SCBA secure.

-Minimizes straining and injury caused by reaching upwards for a heavy SCBA

-Allows for easier inspection of SCBA and harness

Specs:

-For compartments with 24-1/2" H x 12" D minimum usable space

-Lowers SCBA valve 14-1/2" from compartment shelf

-Extends SCBA harness approx. 21" from the apparatus sidewall

Models Available:

30-Min. 4500 PSI Cylinder: Model QS-FD-180-5

45-Min. 4500 PSI Cylinder: Model QS-FD-180-6

Unit Less SCBA Bracket: Model QS-FD-180-LB
