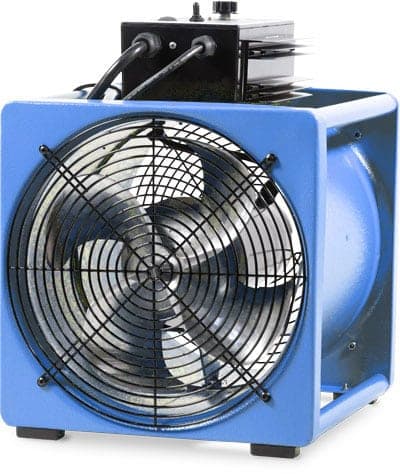

Super Vac VF Series Variable-Speed Confined Space Fans
The VF Series provides precise air control thanks to its variable-speed motor. The VF Series moves 30% more airflow than single-speed electric fans. Featuring full digital controls, fan speeds can be adjusted easily and reversed. The VF Series is compatible with GFCI circuits.
The Variable Speed Model is a 12ā/16"/20" electric, variable-speed, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vacās F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.
Features:
- Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heat
- Precision-Balanced Blade: Maximizes output
- Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finish
- Heavy-Duty Rubber Feet: Friction keeps fan in place
- 4 Carry Handles: Makes transportation easy with one or two people
- Front and Rear Guards: Prevents accidental contact with key components
| VF Series | SIZE | WEIGHT | DIMENSIONS HxWxD | MOTOR | RPM | START | RUN | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|
| Variable Speed Motors | VF124 | 12" | 40 lbs 18 kg |
15.5ā³ x 15ā³ x 13ā³ 395 mm x 380 mm x 330 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 3,100 cfm 5,265 cmh |
| VF164 | 16" | 52 lbs 23.5 kg |
19.25 x 18.75ā³ x 15.5ā³ 490 mm x 480 mm x 394 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 5,900 cfm 10,025 cmh |
|
| VF200 | 20" | 88 lbs 40 kg |
25.5ā³ x 24.75ā³ x 16.25ā³ 650 mm x 630 mm x 415 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 9,800 cfm 16,650 cmh |
|
Original: $3,263.95
-65%$3,263.95
$1,142.38Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The VF Series provides precise air control thanks to its variable-speed motor. The VF Series moves 30% more airflow than single-speed electric fans. Featuring full digital controls, fan speeds can be adjusted easily and reversed. The VF Series is compatible with GFCI circuits.
The Variable Speed Model is a 12ā/16"/20" electric, variable-speed, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vacās F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.
Features:
- Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heat
- Precision-Balanced Blade: Maximizes output
- Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finish
- Heavy-Duty Rubber Feet: Friction keeps fan in place
- 4 Carry Handles: Makes transportation easy with one or two people
- Front and Rear Guards: Prevents accidental contact with key components
| VF Series | SIZE | WEIGHT | DIMENSIONS HxWxD | MOTOR | RPM | START | RUN | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|
| Variable Speed Motors | VF124 | 12" | 40 lbs 18 kg |
15.5ā³ x 15ā³ x 13ā³ 395 mm x 380 mm x 330 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 3,100 cfm 5,265 cmh |
| VF164 | 16" | 52 lbs 23.5 kg |
19.25 x 18.75ā³ x 15.5ā³ 490 mm x 480 mm x 394 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 5,900 cfm 10,025 cmh |
|
| VF200 | 20" | 88 lbs 40 kg |
25.5ā³ x 24.75ā³ x 16.25ā³ 650 mm x 630 mm x 415 mm |
RAE, TEAO, variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
800 w | 9,800 cfm 16,650 cmh |
|
