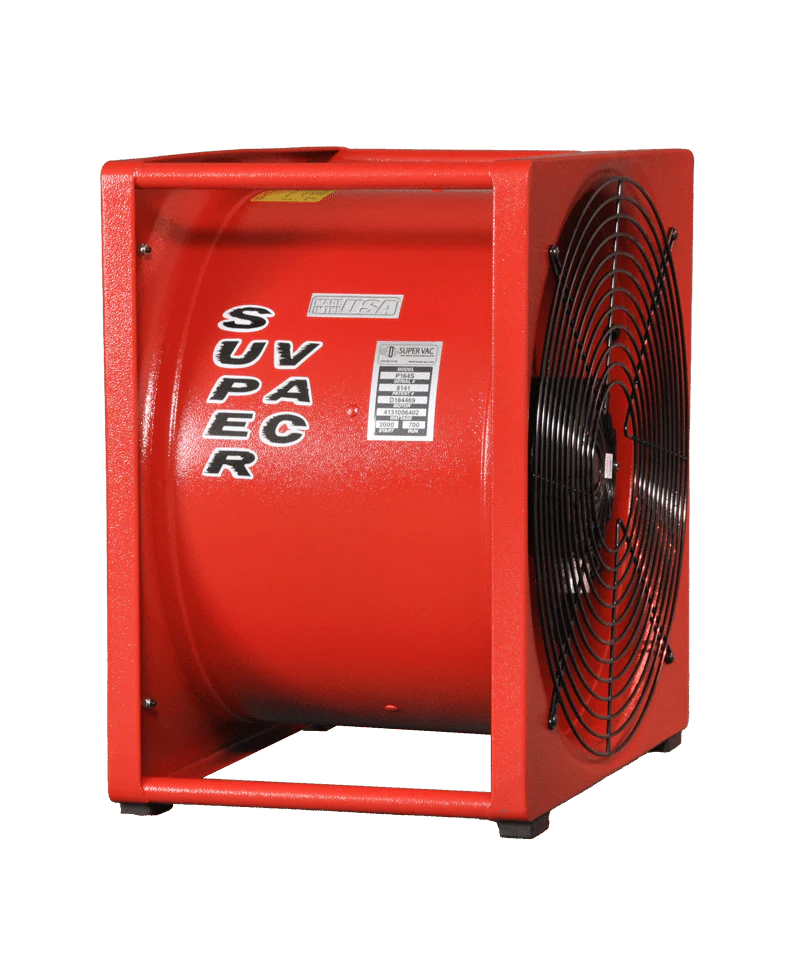

Super Vac Standard Electric Smoke Ejector
TheĀ Super Vac Smoke Ejector is the most popular smoke ejector in the fire industry, this 16" electric, single-speed Super Vac Smoke Ejector delivers the perfect combination of size and power, perfect for departments that need an everyday smoke ejector. This fan pulls smoke from structures using negative pressure but can be flipped around for positive pressure tactics. Smoke ejectors are most effective when working with natural airflow and not against Mother Nature.
- Patented 4-tip recurve Aluminum Blade holds up better than plastic in high heat
- Precision Balanced Blade maximizes output
- Rubber Feet heavy duty rubber adds friction to keep fan in place
- 4 Carry Handles makes transportation easy with 1 or 2 people
- Front and Rear Guards prevents accidental contact with key components
- Steel and Aluminum frames available
- 12", 16", 20", or 24"
| MODEL | SIZE | WEIGHT | DIMENSIONS HxWxD | MOTOR | RPM | START | RUN | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|
| STANDARD MOTOR |
P124S | 12" | 40 lbs 18 kg |
15.5" x 15" x 13" 395 x 380 x 330 mm |
Bluffton, single speed, TEAO, 1/2 HP, 50/60Hz, 115/230V AC |
3,450 | 2,000 w 15-amp circuit |
800 w | 3,700 cfm 6,285 cmh |
| P164S | 16" | 44 lbs 20 kg |
19.25" x 18.75" x 13" 490 x 480 x 330 mm |
Bluffton, single speed, TEAO, 1/3 HP, 50/60Hz, 115/230V AC |
1,725 | 2,000 w 15-amp circuit |
700 w | 5,200 cfm 8,835 cmh |
|
| P164S-AL | 18" | 40 lbs 18 kg |
19.25" x 18.75" x 13" 490 x 480 x 330 mm |
Bluffton, single speed, TEAO, 1/3 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design |
1,725 | 2,000 w 15-amp circuit |
700 w | 5,200 cfm 8,835 cmh |
|
| P200S | 20" | 88 lbs 38.5 kg |
25.5" x 24.75" x 16.25" 650 x 630 x 415 mm |
Bluffton, single speed, TEAO, 1 HP, 50/60Hz, 115/230V AC |
1,725 | 4,000 w 15-amp circuit |
1,500 w | 9,800 cfm 16,650 cmh |
|
| P200S-AL | 20" | 70 lbs 32 kg |
25.5" x 24.75" x 16.25" 650 x 630 x 415 mm |
Bluffton, single speed, TEAO, 1 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design |
1,725 | 4,000 w 15-amp circuit |
1,500 w | 9,800 cfm 16,650 cmh |
|
| P244S | 24" | 110 lbs 50 kg |
28.5" x 28" x 18.75" 725 x 710x 480mm |
Bluffton, single speed, TEAO, 1-1/2 HP, 50/60Hz, 115/230V AC |
1,725 | ||||
