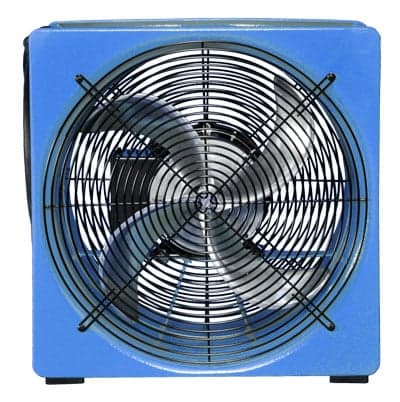

Super Vac HF Series Single High-Speed Confined Space Fans
The Standard Motor Model is a 12ā/16" electric, high-speed, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vacās F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.
Features:
- Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heat
- Precision-Balanced Blade: Maximizes output
- Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finishĀ
- Heavy-Duty Rubber Feet: Friction keeps fan in place
- 4 Carry Handles: Makes transportation easy with one or two people
- Front and Rear Guards: Prevents accidental contact with key components
Hazardous Location Motor Model:
The Hazardous Location Motor Model is a 12ā/16" electric, hazardous location, high-speed, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vacās F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.
Features:
- Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heat
- Precision-Balanced Blade: Maximizes output
- Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finishĀ
- Heavy-Duty Rubber Feet: Friction keeps fan in place
- 4 Carry Handles: Makes transportation easy with one or two people
- Front and Rear Guards: Prevents accidental contact with key components
| HF Series | SIZE | WEIGHT | DIMENSIONS HxWxD | MOTOR | RPM | START | RUN | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|
|
Standard Motors |
HF124 | 12" | 40 lbs 18 kg |
15.5" x 15" x 13" 395 x 380 x 330 mm |
Bluffton, single speed, TEAO, 1/2 HP, 50/60Hz, 115/230V AC |
3,450 | 2,000 w 15-amp circuit |
800 w | 3,700 cfm 6,285 cmh |
| HF164 | 16" | 59 lbs 27 kg |
19.25ā³ x 18.75ā³ x 13ā³ 490 mm x 480 mm x 394 mm |
Bluffton, single speed, TEAO, 1-1/2 HP, 50/60Hz, 115/230V AC |
3,450 | 6,000 w 20-amp circuit |
2,100 w | 9,620 cfm 16,345 cmh |
|
|
Hazardous Location Motors |
HF124E | 12" | 42 lbs 19 kg |
15.5ā³ x 15ā³ x 13ā³ 395 mm x 380 mm x 330 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1/2 HP, 50/60Hz, 115/230V AC |
3,450 | 2,000 w 15-amp circuit |
800 w | 3,700 cfm 6,285 cmh |
| HF164E | 16" | 63 lbs 28.5 kg |
19.25ā³ x 18.75ā³ x 15.5ā³ 490 mm x 480 mm x 394 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1-1/2 HP, 50/60Hz, 115/230V AC |
3,450 | 6,000 w 20-amp circuit |
2,100 w | 9,620 cfm 16,345 cmh |
|
