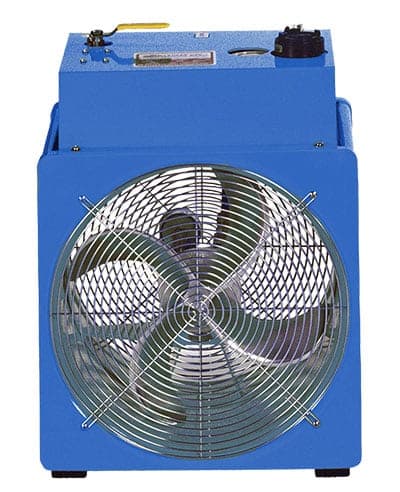

Super Vac AF Series Compressed Air Confined Space Ventilators
The AF Series features a pneumatic air motor, making this confined space air ventilator safe for environments with unknown gases. Complete with its own filter, gauge and oiler, the AF Series has everything you need to move lots of air without a lot of air usage.
The Pneumatic Motor Model is a 12ā/16"/20"/24", pneumatic powered, conned space fan that delivers the perfect combination of size and power in an everyday ventilator. Super Vacās F Series fans provide unmatched durability; the entire frame is constructed of steel, and the patented 4-tip recurve aluminum blade is precision balanced for maximum output.
Features:
-
Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building while providing high-velocity screw action to sweep air back over the motor; aluminum holds up better than plastic in high heatĀ
-
Precision-Balanced Blade: Maximizes output
-
Steel frame with heavy-gauge steel grill and baked-on powder coat: Ensures a long-lasting finishĀ
-
Heavy-Duty Rubber Feet: Friction keeps fan in place
-
4 Carry Handles: Makes transportation easy with one or two people
-
Front and Rear Guards: Prevents accidental contact with key components
| AF Series | SIZE | WEIGHT | DIMENSIONS HxWxD | MOTOR | RPM | RUN | OUTPUT | |
|---|---|---|---|---|---|---|---|---|
|
Pneumatic Motors
Ā |
AF124 | 12" | 39 lbs 18 kg |
15.5ā³ x 10.75ā³ x 16ā³ 395 mm x 380 mm x 330 mm |
Pneumatic, 1/2 HP | 2,000 | 80 PSI-27 cfm | 3,800 cfm 6,455 cmh |
| AF164 | 16" | 45 lbs 20.5 kg |
19.25ā³ x 18.75ā³ x 15.5ā³ 490 mm x 480 mm x 394 mm |
Pneumatic, 1-1/2 HP | 3,600 | 100 PSI-75 cfm | 9,600 cfm 16,310 cmh |
|
| AF200 | 20" | 60 lbs 27 kg |
25.5ā³ x 24.75ā³ x 16.25ā³ 650 mm x 630 mm x 415 mm |
Pneumatic, 1-1/2 HP | 3,600 | 100 PSI-75 cfm | 9,800 cfm 16,650 cmh |
|
| AF244 | 24" | 105 lbs 48 kg |
28.5ā³ x 28ā³ x 16.25ā³ 725 mm x 710 mm x 480 mm |
Pneumatic, 5 HP | 2,250 | 100 PSI-100 cfm | 14,200 cfm 24,125 cmh |
|
