Super Flow Straight 6” Gate Valves with Flange

Super Flow Straight 6” Gate Valves with Flange

Super Flow 6” Gate Valves

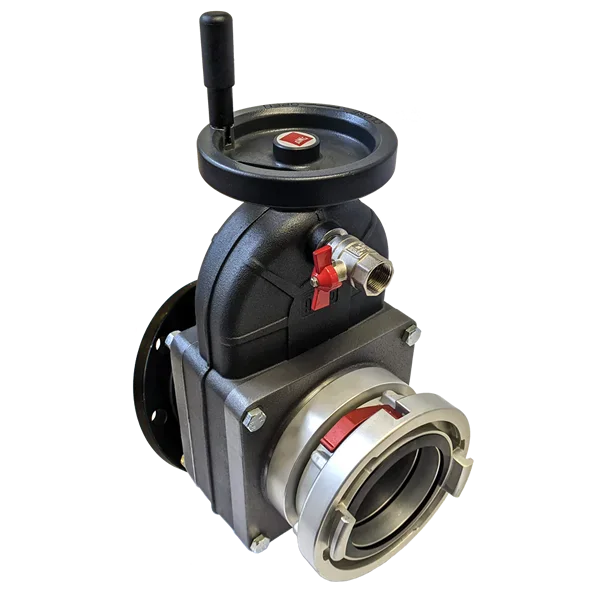

This LDH gate valve has our largest water way which provides low friction loss due to a high flow design. The light weight gate valve is available in three configurations, Straight, 30° elbow, all models include a 3/4” air bleeder valve, a non-rising stem, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz, NST or Flange connections. Friction loss at 1000 GPM-0.1 psi.

Dimensions:

Height: 16”

Length: 10”

Width: 8.5”

Weight: 30 lbs

Available Models:

FF Flanges
H860-50-60FF/CAP	6" Straight Superflow Gate Valve - 6" Flat Face Flange x 5" Storz w/Lok Cap/Cable
H860-60-60FF/CAP	6" Straight Superflow Gate Valve - 6" Flat Face Flange x 6" Storz w/Lok Cap/Cable
RF Flanges
H860-50-60RF/CAP	6" Straight Superflow Gate Valve - 6" Raised Face Flange x 5" Storz w/Lok Cap/Cable
H860-60-60RF/CAP	6" Straight Superflow Gate Valve - 6" Raised Face Flange x 6" Storz w/Lok Cap/Cable
