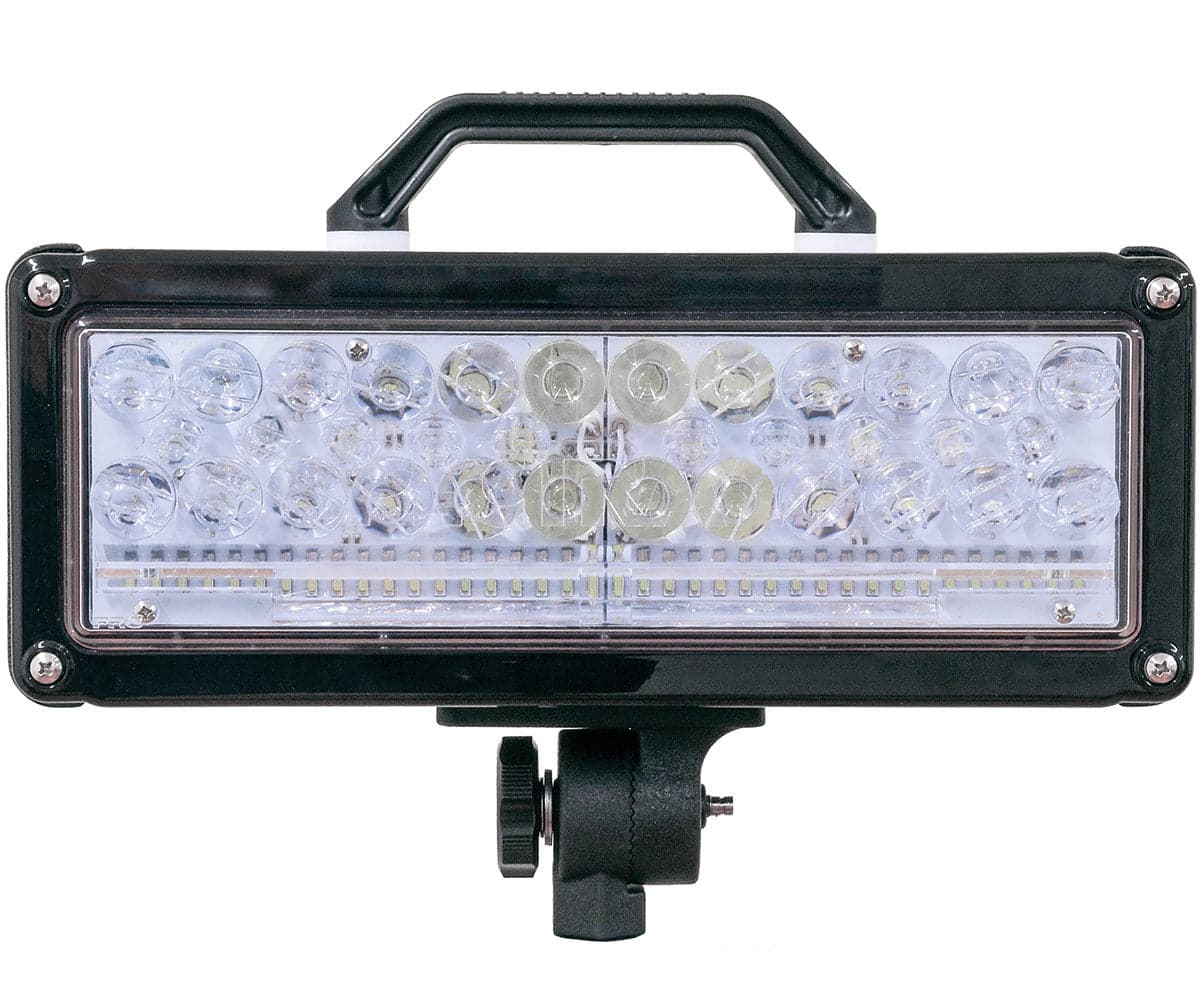

Spectra HR LED Fixed Side Mount

Spectra HR LED Fixed Side Mount

The 580 side mounted,fixed pedestal light allows the lamphead to rotate 450° and has a self adjusting
friction brake to prevent arbitrary rotation.

The pedestal has around mounting base attached to a side mount bracket.

  • SPECTRA lampheads use a 2.75″ bracket.
  • EVOLUTION II & FOCUS lampheads use a 3.5″ bracket.
  • 2 rows of intense flood LEDs provide the ultimate in scene & work area illumination
  • Center row of bright spot LEDs offer long distance illumination

The Spectra HR uses two unique groups of lenses. The upper group projects wide beams at different angles to cover the entire vertical face of the building. At the same time the lamphead’s lower group lights the ground area in front of a fire apparatus. Each 28,000 lumen Spectra HR achieves this illumination without lamp adjustment.

Lighting Features:

  • Two distinct groups of lenses are utilized:

    • Upper Group - designed so each lens projects wide beams of light at different angles to cover the entire vertical face of the building
    • Lower Group - designed to illuminate the ground ahead of the apparatus
  • 72 ultra-bright white LEDS - 34 for the Upper Group and 38 for the Lower Group
  • Adjustable, pivoting mounting arm incorporates a round, sturdy, reinforced knurled locking knob
  • Sure-Grip molded handle ensures reliable grip every time and keeps the handle cool to the touch
  • Lamp head measures 14" (355 mm) W x 3 3/4" (95 mm) D x 5 3/8" (137 mm) H
  • Available in both 12/24 VDC and 120/240 VDC, with or without a switch
Select Model
From $1,232.68

Original: $3,521.95

-65%
Spectra HR LED Fixed Side Mount—

$3,521.95

$1,232.68

Product Information

Shipping & Returns

Description

The 580 side mounted,fixed pedestal light allows the lamphead to rotate 450° and has a self adjusting
friction brake to prevent arbitrary rotation.

The pedestal has around mounting base attached to a side mount bracket.

  • SPECTRA lampheads use a 2.75″ bracket.
  • EVOLUTION II & FOCUS lampheads use a 3.5″ bracket.
  • 2 rows of intense flood LEDs provide the ultimate in scene & work area illumination
  • Center row of bright spot LEDs offer long distance illumination

The Spectra HR uses two unique groups of lenses. The upper group projects wide beams at different angles to cover the entire vertical face of the building. At the same time the lamphead’s lower group lights the ground area in front of a fire apparatus. Each 28,000 lumen Spectra HR achieves this illumination without lamp adjustment.

Lighting Features:

  • Two distinct groups of lenses are utilized:

    • Upper Group - designed so each lens projects wide beams of light at different angles to cover the entire vertical face of the building
    • Lower Group - designed to illuminate the ground ahead of the apparatus
  • 72 ultra-bright white LEDS - 34 for the Upper Group and 38 for the Lower Group
  • Adjustable, pivoting mounting arm incorporates a round, sturdy, reinforced knurled locking knob
  • Sure-Grip molded handle ensures reliable grip every time and keeps the handle cool to the touch
  • Lamp head measures 14" (355 mm) W x 3 3/4" (95 mm) D x 5 3/8" (137 mm) H
  • Available in both 12/24 VDC and 120/240 VDC, with or without a switch
