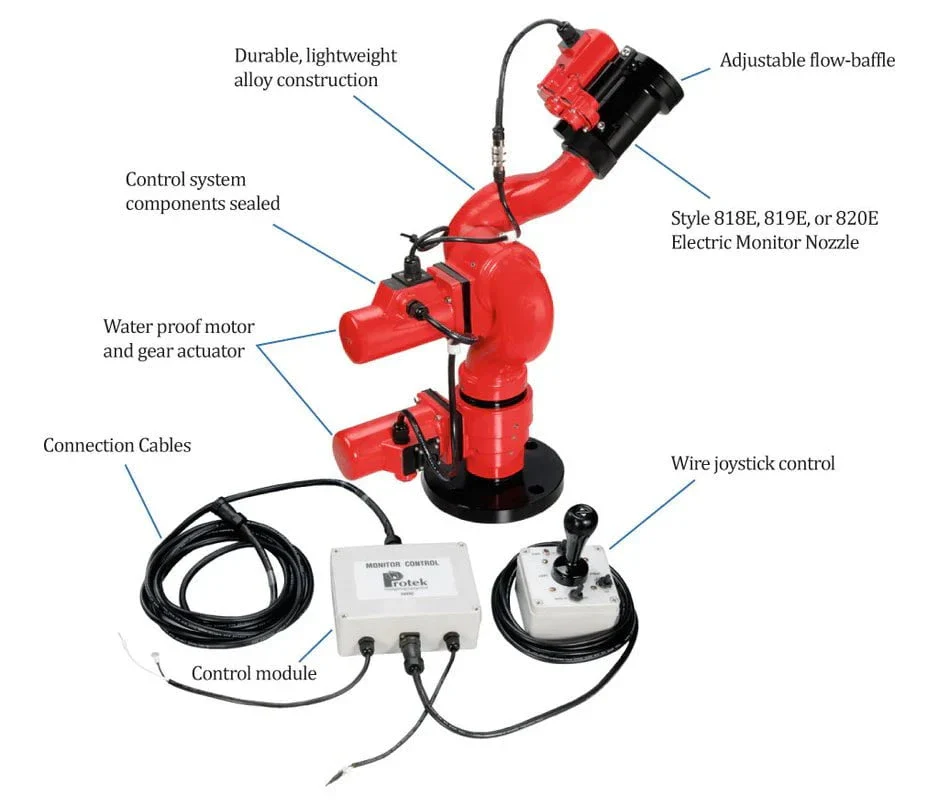

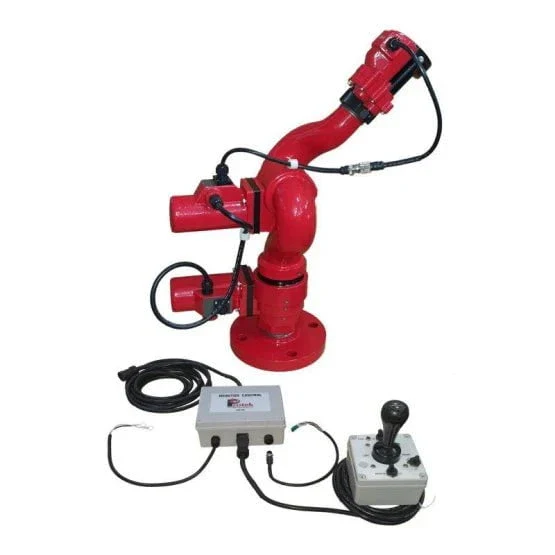

MULTI-PURPOSE REMOTE CONTROL MONITOR

Features

• Full 2" waterway for flow rate of up to 400 GPM (1525 LPM)
• Vertical travel of 135˚ from 90˚above and 45˚ below horizontal
• Electric drives and circuit box are waterproof
• Gear motors totally enclosed and sealed to withstand harsh environments
• Current limit switch for pattern control, horizontal and vertical travel and open/close of electric valve
• Electronic controls with manual override
• Optional 180 ˚ or 300˚ horizontal rotation
• Automatic power off function during inactivity for enhanced performance and safety
• Programmable automatic oscillation and stow position
• Standard 24V with  optional integrated AC-110V or AC- 220V
• Optional 12V or with DC power supply

Specifications

• Model: 4922
• 400 GPM (1525 LPM)
• Inlet:  2" (50 mm) or 2-1/2" (65 mm)
• Outlet:  1-1/2" (38 mm) NH
• Control: Electric
• Vertical Travel:  135°
• Rotational Swivel: 180° or 300˚ rotation
• Material: Alloy
• Finish: Red Powder Coating
• Weight:  15 lbs (7kg)
