Kussmaul Load Manager 1HP

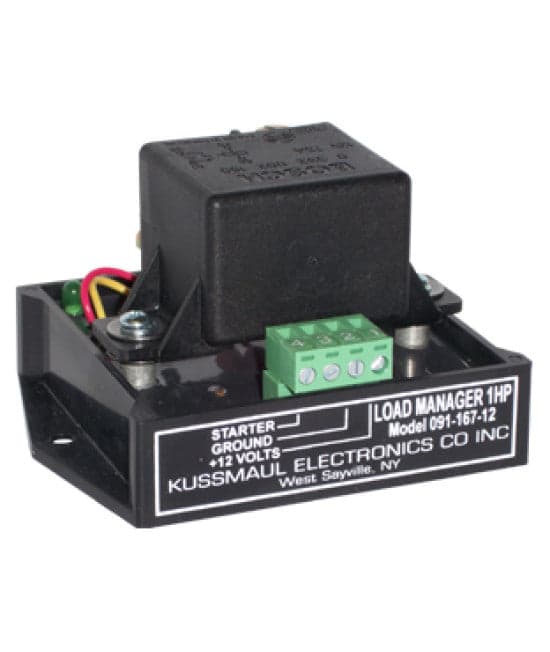

The Model 091-167-12, Load Manager 1HP, is a compact, encapsulated load manager, that monitors the battery voltage, and operates a 75 ampere relay to de-energize a load when the voltage drops. With the engine running, and battery above 12.8 volts, the relay contacts are closed, and power is supplied.

With the engine stopped, the loads on the battery will decrease the battery voltage. When the voltage drops below 11.5 volts, the relay contacts open to prevent complete discharge of the battery. A connection to the vehicle's starter prevents opening of the relay contacts during cranking, when a low voltage is expected.

Encapsulation of the electronic circuits protects them from water damage, and permits mounting the Load Manager 1HP under the hood, or other locations.

• Sheds 1 Load
• 75 Amp Relay Contact Rating
• Low Voltage Disconnect
• Prevents Inadvertent Battery Discharge
• Encapsulated Electronics
• Engine Start Shutdown Protected
• 3 year warranty
