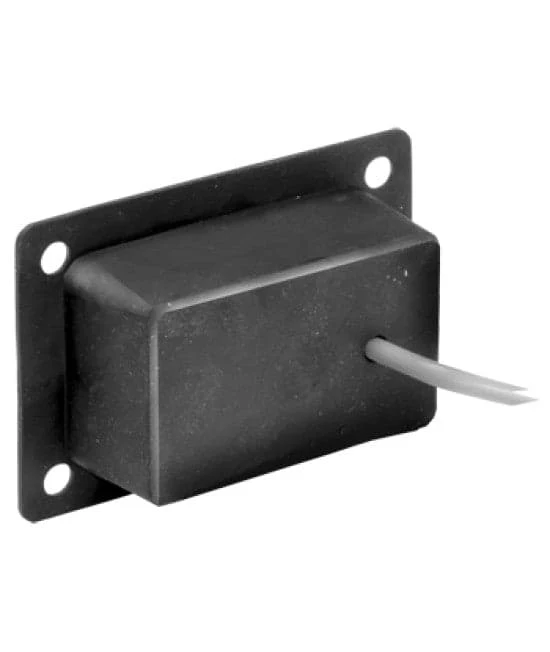

Kussmaul Indicator Seal
INDICATOR SEAL INSTALLATIONÂ
1. Locate Indicator in a convenient place on the vehicle.
2. Place the template in position and center punch in 8 places.
3. Drill holes as shown.
4. Cut out opening connecting 1/2” holes together.
5. Strip jacket 3” from cable and insert cable thru seal so jacket penetrates past grommet seal.
6. Connect wiring to indicator connector in accordance with indicator installation procedure.
7. Install as shown.
8. Insert (4) #8 screws and tighten, (CAUTION: Do not over tighten because
 you will bend the plastic bezel and break the watertight seal).
Original: $21.95
-65%$21.95
$7.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
INDICATOR SEAL INSTALLATIONÂ
1. Locate Indicator in a convenient place on the vehicle.
2. Place the template in position and center punch in 8 places.
3. Drill holes as shown.
4. Cut out opening connecting 1/2” holes together.
5. Strip jacket 3” from cable and insert cable thru seal so jacket penetrates past grommet seal.
6. Connect wiring to indicator connector in accordance with indicator installation procedure.
7. Install as shown.
8. Insert (4) #8 screws and tighten, (CAUTION: Do not over tighten because
 you will bend the plastic bezel and break the watertight seal).
