Kussmaul Euro Charger Single Bar Graph Display

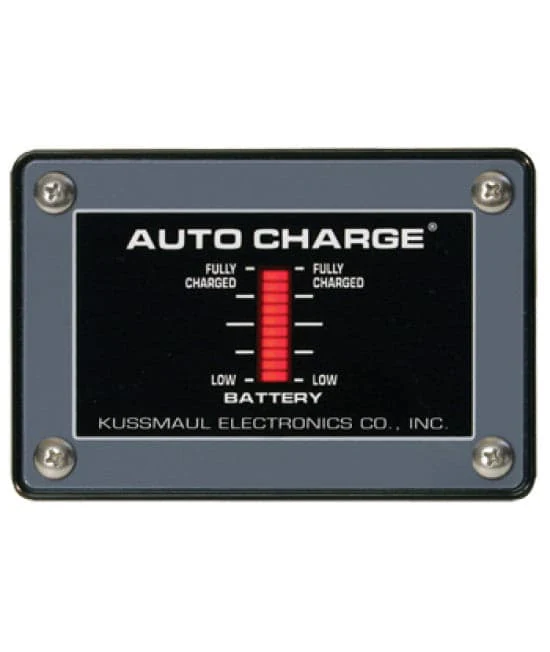

Single Bar Graph Display for  Euro Charger I and  Euro Charger 1 VHO

INDICATOR INSTALLATION

1. Locate Indicator in a convenient place on the vehicle.

2. Place the template in position and center punch in 4 places.

3. Drill holes as shown.

4. Cut out square hole.

5. Connect wiring to charger in accordance with the instructions in the charger installation instructions.

6. Install as shown.

7. Insert (4) #8-32 screws supplied and tighten.

CAUTION: Do not over tighten because you will bend the plastic bezel and break the watertight seal
