Kussmaul 25 Amp DC Meter

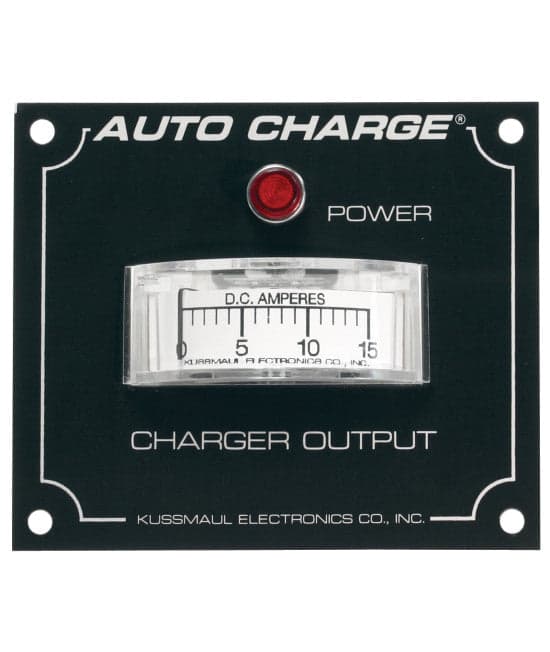

The Model IN-3-XX Indicator Panel contains an ammeter to indicate battery charger output current and a neon indicator to indicate power input to the vehicle.

Available also in 20 or 25 Ammeter Current.

IN-3-15  (15 Amp)

IN-3-20 (20 Amp)



INSTALLATION INSTRUCTIONS

The Model IN-3-25 Indicator Panel contains an ammeter to indicate battery charger output

current and a neon indicator to indicate power input to the vehicle. The panel is designed to

cover a 2 1/2” hole in the vehicle.

To Mount the IN-3-25:

1. Locate a suitable spot on the vehicle and mark the center of the desired location.

2. Place the panel over the “center mark” so that the opening is precisely in the middle of the

 rectangular opening.

3. Mark the location of the four corner holes.

4. Center-Punch the “center mark” and the four corner holes.

5. Drill out the center hole with a 2 1/2” hole saw and the four corner holes with a 5/32”

 diameter drill.

6. Remove the protective laminate from the front of the panel and assemble the meter and

 neon indicator to the panel.

7. Connect the neon indicator so that it is energized when power is applied to the vehicle

 (see schematic).
