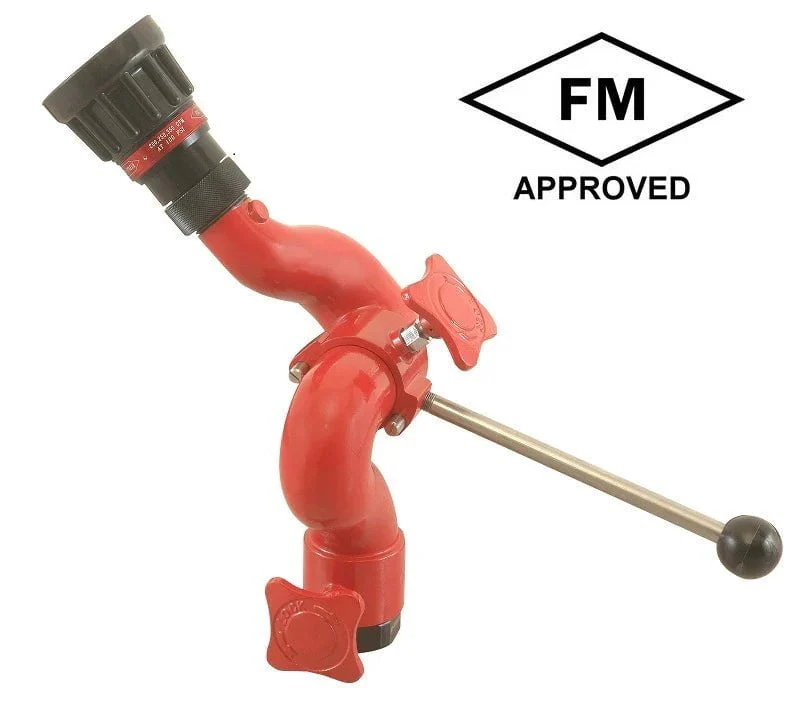

Industrial Monitor 2 1/4" waterway

Features

• Rugged and flow-efficient monitor with high reliability and minimal maintenance
• Full 2-1/4" waterway for flow rate of up to 500 GPM (1900 LPM)
• Ideal for marine, offshore, industrial and other corrosive environment
• Corrosion resistant powder coat finish
• Cast-in turning vanes for efficient flow and minimal friction loss
• Highly maneuverable and easy to operate
• Positive friction locks for both horizontal and vertical travel to hold desired position
• Compact design and low-profile
• Optimize advanced computer aided design and testing technology

Specifications

• Model: 4605
• 500 GPM (1900 LPM)
• Operating Pressure: 200 PSI (14 BAR)
• Inlet: Options: 2" NPT (F), 2 1/2" & 3" flange
• Outlet:  1-1/2" (38 mm)
• Control: Tiller
• Vertical Travel:  140° from 80° above to 60° below horizontal
• Rotational Swivel: 360°
• Material: Alloy
• Finish: Red Powder Coating
• Weight:  12 lbs (5 kg)
