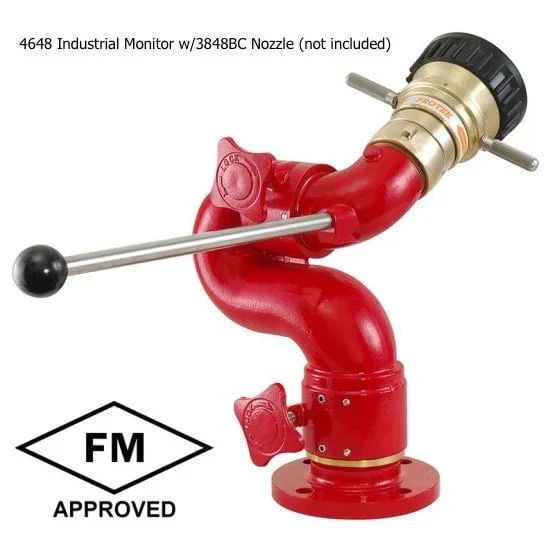

Industrial Brass Monitor 3 1/4" Waterway 1250 GPM

Features

• Rugged and flow-efficient monitor with high reliability and minimal maintenance
• Full 3-1/4”waterway for flow rate of up to 1250 GPM (4800 LPM)
• Ideal for marine, offshore, industrial and other corrosive environment
• Corrosion resistant brass construction
• Cast-in turning vanes for efficient flow and minimal friction loss
• Highly manoeuvrable and easy to operate
• Positive friction locks for both horizontal and vertical travel to hold desired position
• Compact design and low-profile
• Optimize advanced computer aided design and testing technology
• FM approved

Specifications

• Model: 4648
• 1250 GPM (4800 LPM)
• Operating Pressure: 200 psi (14 bar)
• Inlet: 3" & 4" Flange
• Outlet:  2-1/2" (65 mm)
• Control: Tiller Bar
• Vertical Travel:  135° from 90° above to 45° below horizontal
• Rotational Swivel: 360°
• Material: Brass
• Finish: Red Powder Coating
• Weight:  52 lbs (23.5 kg)
