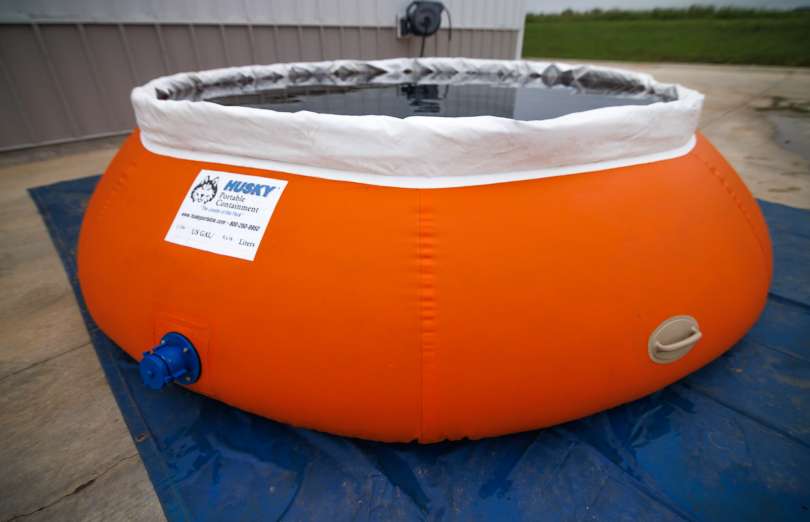

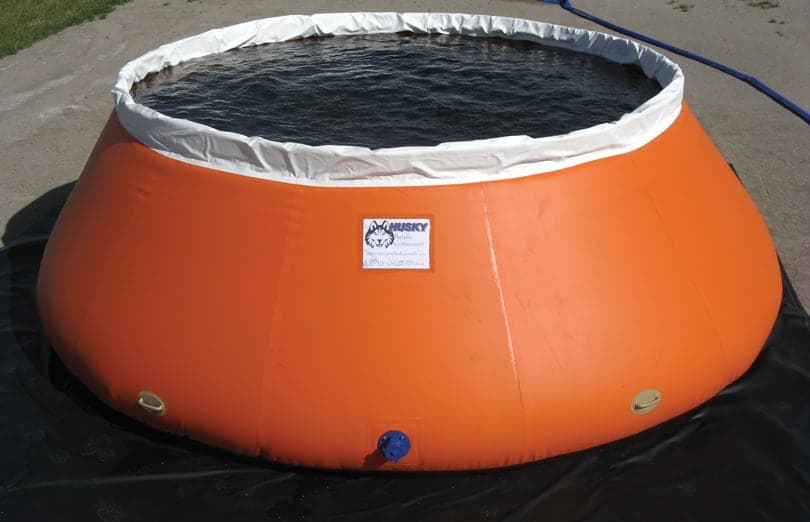

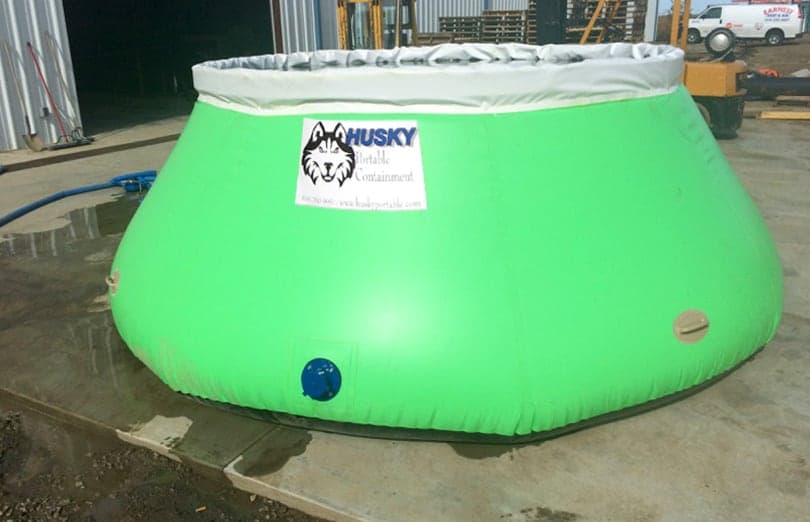

Husky Self-Supporting Frameless Portable Water HIGH-SIDE Tank
Husky® Self-Supporting Water Tanks, also called onion tanks or pumpkin tanks, are the perfect solution when storage and manpower are a concern. One man set-up frees up personnel, and because these tanks are frameless, there is no assembly required and they are easy to transport and store. They are also designed to work better on slopes than any other open top tank on the market. Husky® offers both low and high side models.

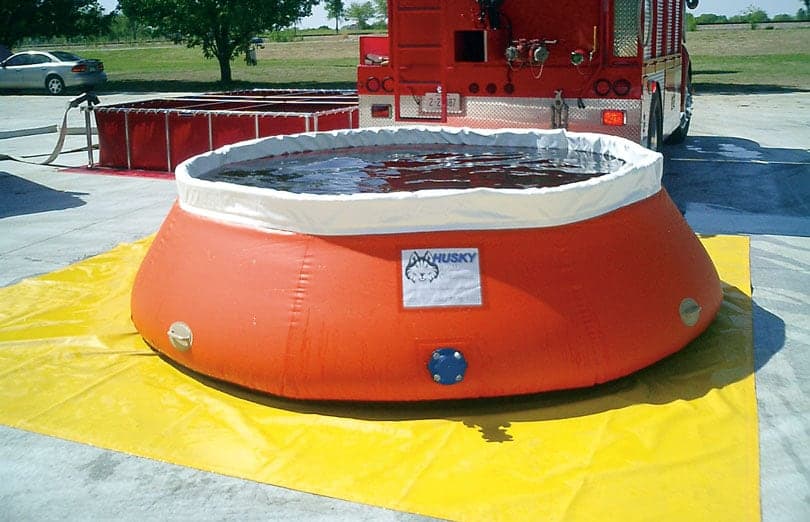

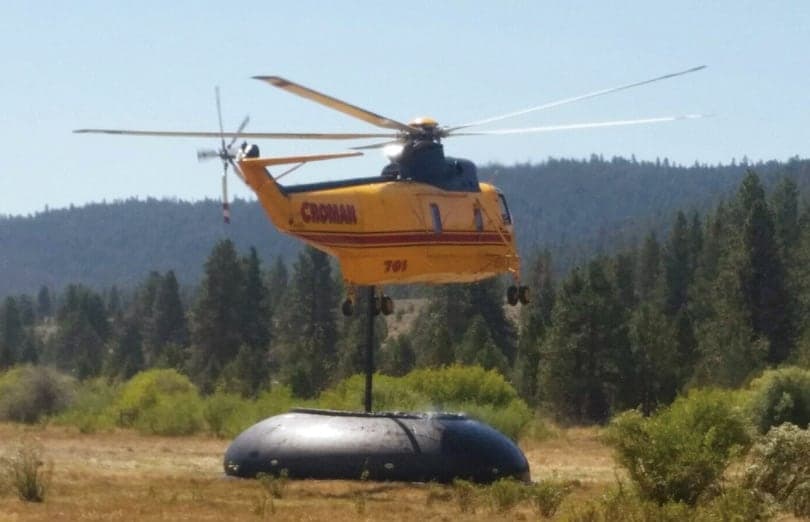

Husky® Onion Tanks are also ideal for use in forest fire operations. The high side models are used for bucket dipping and snorkeling operations. The US Forest Service has trusted Husky® Portable Containment water tanks for over ten years.
Features:
- 250 - 5,000 Gallons. Custom sizes available!
- Optional Air collar (comes with tire valve, pressure relief valve, & boat check valve)
- All air collar tanks come with an emergency field repair kit
- Low sidemodels are 33" tall when filled
- High side models range from 40" to 96" when filled
- Heavy-duty, self-rising foam collar is standard
- Durable EXLON® material is available
- Durable 30 oz. floor is standard

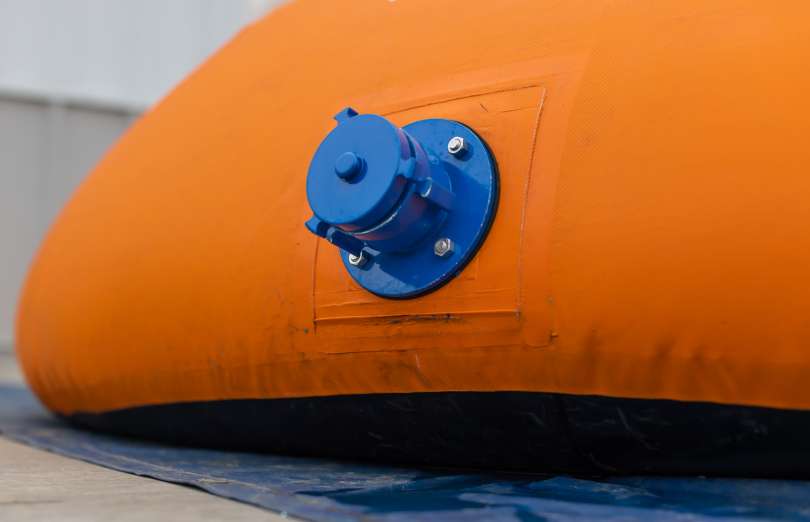

- 2 1/2" NST female flange is standard
- 1 1/2" - 6" male or female flanges available
- Camlock and Storz adapters available (2 1/2" - 6")
- Ground Covers and Top Covers are available
- Available in XR-5, XR-5B, XR-3PW, all Urethanes, PVCs & PVC/Urethane blends, EXLON®
- A storage bag is included
Liner Material Options & Colors:
- Vinyls: 22 oz., 22 oz. sides with our exclusive 28 oz. floor, and 30 oz. Colors Available:
22 oz.: Red, Yellow, Blue, Orange, Green, White, Black, and Lime Green
30 oz.: Red, Yellow, Blue, Orange, and Black
Dimensions:
Standard Dimensions (High-Side Tanks)
| Capacity Gal. (Liters) |
Base Diameter Std./Meters |
Top Diameter Std./Meters |
Height (Filled) Std./Meters |
Weight lbs./kg |
Folded Dimensions (Approx.) Std./Meters |
|---|---|---|---|---|---|
| 500 (1893) | 6'9" / 2.1 | 4'0" / 1.2 | 40" / 1.0 | 39 / 17.7 | 25" x 25" x 18" / .6 x .6 x .4 |
| 1000 (3785) | 8'6" / 2.6 | 5'6" / 1.7 | 44" / 1.1 | 54 / 24.5 | 25" x 25" x 22" / .7 x .7 x .5 |
| 1200 (4542) | 9'8" / 3.0 | 5'10" / 1.8 | 44" / 1.1 | 59 / 26.8 | 26" x 26" x 22" / .7 x .7 x .6 |
| 1600 (6056) | 10'8" / 3.3 | 6'10" / 2.1 | 44" / 1.1 | 67 / 30.4 | 28" x 28" x 22" / .8 x .8 x .6 |
| 1800 (6313) | 11'0" / 3.4 | 7'3" / 2.2 | 46" / 1.2 | 72 / 32.7 | 30" x 30" x 22" / .8 x .8 x .6 |
| 2000 (7570) | 11'9" / 3.6 | 7'9" / 2.4 | 48" / 1.2 | 75 / 34 | 30" x 30" x 22" / .8 x .8 x .6 |
| 2500 (9463) | 12'8" / 3.9 | 8'6" / 2.6 | 48" / 1.2 | 84 / 38 | 34" x 34" x 22" / .9 x .9 x .6 |
| 3000 (11355) | 14'2" / 4.3 | 9'2" / 2.8 | 48" / 1.2 | 99 / 45 | 34" x 34" x 24" / .9 x .9 x .7 |
| 4000 (15140) | 16'2" / 4.9 | 11'0" / 3.4 | 48" / 1.2 | 114 / 51.7 | 38" x 38" x 24" / 1 x 1 x .7 |
| 5000 (18925) | 16'2" / 4.9 | 10'6" / 3.2 | 60" / 1.5 | 125 / 56.7 | 38" x 38" x 28" / 1 x 1 x .7 |
Original: $829.95
-65%$829.95
$290.48Product Information
