Husky Aqua Tank Type 2

Husky^® Portable Containment's Aluminum Quick Assemble AQUA Tank gives you the best of both worlds—a rigid frame AND portability. The AQUA Tank snaps together quickly and fits into its own storage bag for easy handling and compact storage.

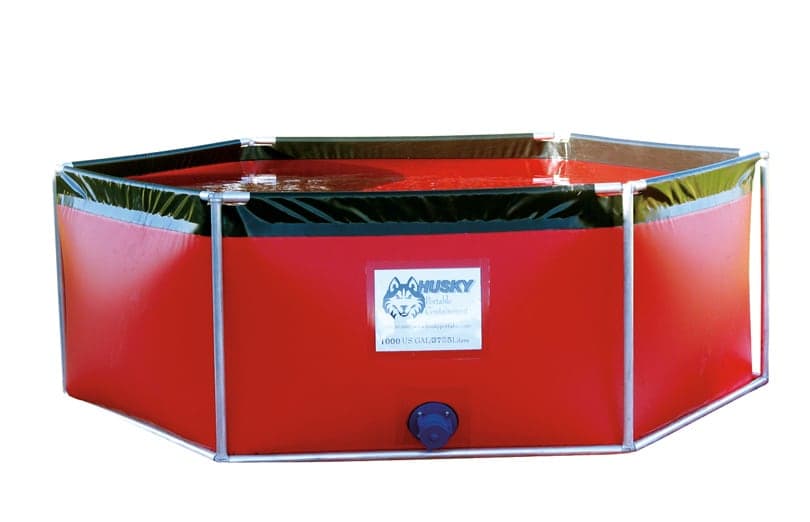

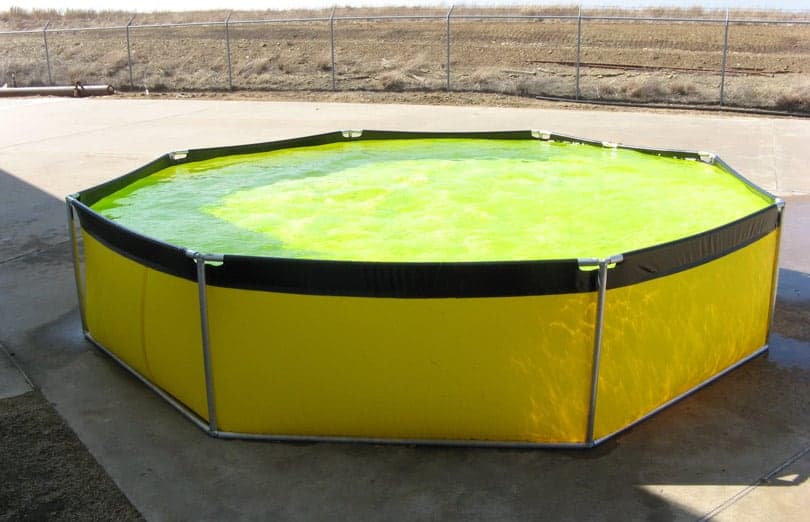

Husky^® Aqua Tank Type II is built in a hexagon, 500, and 1000 gallon tanks, and 1500 to 3000’s are built as an octagon. The rigid top rails give the strength for throwing hoses over the top, no hose stand needed. The frame pieces are built from 6061 aircraft quality aluminum tubing. The corners are a slip in fit which after the liner is installed, allows the top and bottom rail pieces to lock into place. No pins or wires to fight with and NO TOOLS NEEDED! Easy setup—it's a snap!

Features:

1. 100-3000 gallon capacities. Custom sizes available!
2. Materials: XR-5, XR-5B, XR-3PW, all Urethanes, PVCs, and PVC/Urethane blends, EXLON^®
3. 2" NPT Rigid Female Flange standard (other fittings available)

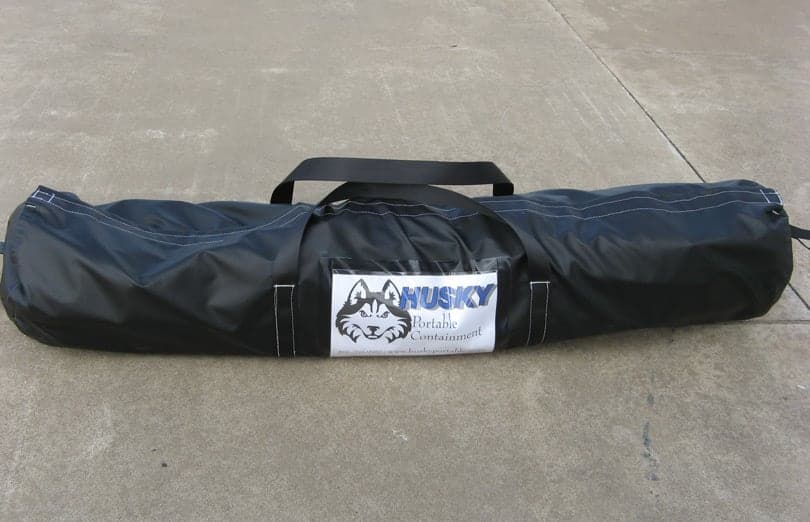

4. Storage bag included
5. Types of vinyl: 22 oz. Red, Yellow, Blue, Orange, Green, Black, and Lime Green
6. EXLON^®: 22 oz. Only, Colors: Red and Yellow

Dimensions:

Part No.	Assembled Size	Stored Size	Weight
ATII-100	3' x 3' x 24" high	38" x 8"	39 lbs.
ATII-250	4' x 4' x 27"	50" x 8"	47 lbs.
ATII-500	6 sides/ ea. side 38" x 34" high	40" x 10"	61 lbs.
ATII-1000	6 sides/ ea. side 52" x 34"	54" x 10"	77 lbs.
ATII-1500	8 sides/ ea. side 48" x 34"	50" x 10"	85 lbs.
ATII-2000	8 sides/ ea. side 59" x 34"	61" x 12"	113 lbs.
ATII-2500	8 sides/ ea. side 63" x 34"	63" x 14"	129 lbs.
ATII-3000	8 sides/ ea. side 67" x 34"	67" x 14"	137 lbs.
