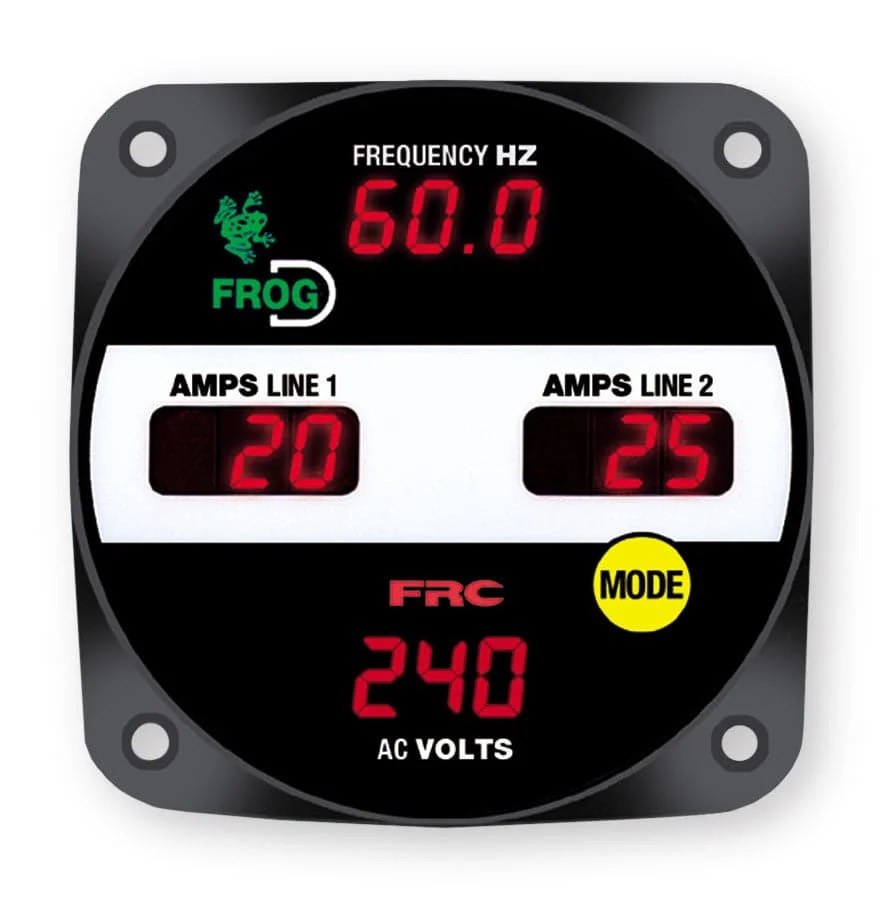

FROG-D Single Phase Generator Display

STANDARD KIT includes:

• Single Phase – display module, 2 current sensors, AC voltage transformer, and cables.

• Displays Frequency, Voltage, and Current
• Ideal for Hydraulic, Diesel Powered, and PTO Generators
• Rated for 50/60 Hz Generators from 6 to 45 kW
• Highly Visible Ultra-Bright LEDs
• MODE Button Displays Total Generator Hrs. and Hydraulic Oil Temp.
• Built-in Warning for Current Overloads, Voltage Fluctuations, and High Hydraulic Oil Temperature
• Optional Hydraulic Oil Temperature Sensor and Audible Alarm Buzzer
• Single Phase rated 6 to 45 kW

Dimensions:

• 4.25″ (H) x 4.25″(W)
  108 mm (H) x 108 mm (W)
• Interface Module
  3.8″ x 5.9″ x 1.9″
  97 mm x 150 mm x 48 mm
