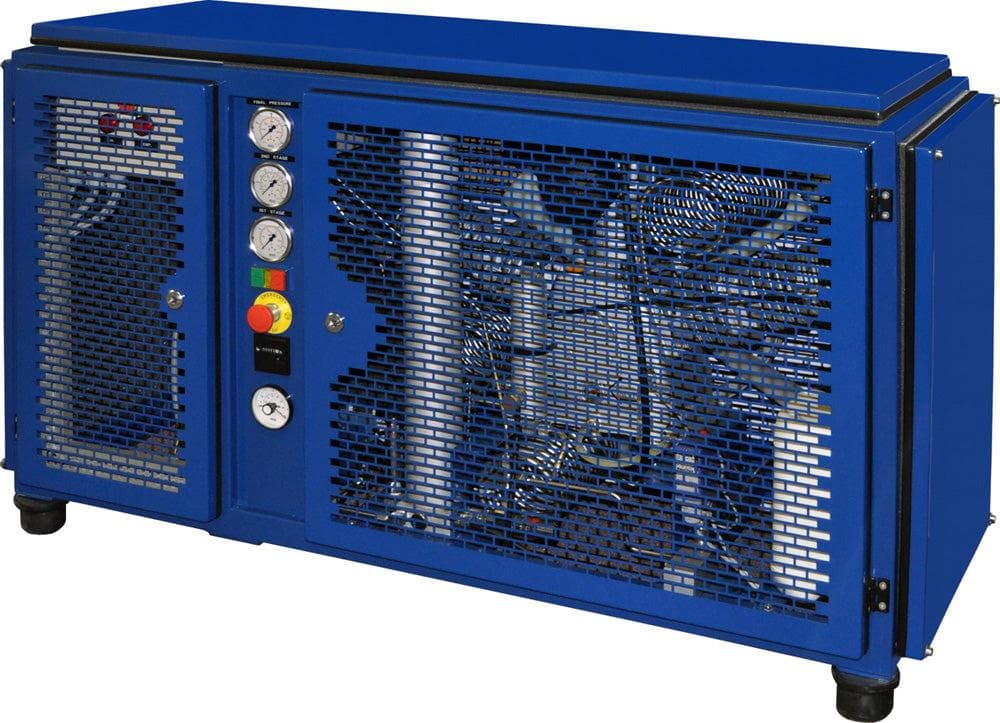

7.5HP Horizontal Breathing Air Compressor

Our Fast 90C Breathing Air Compressors provide 5000 PSI breathing air. The Fast90C breathing air compressor is compact in size, very user friendly and our most popular model. This compressor is great for the small to mid-sized fire departments, fire brigades, dive shops and paintball fields. Complete with a 13,000 @ 80F - 20,020 @ 68F CF cartridge purification chamber. We have packed this HP compressor with many standard features that others charge extra for. The Fast 90C is a continuous duty compressor.

• Start/Stop Switch with Thermal Button
• Electric Starter / Battery fitted (Gas & Diesel Models)
• Direct on-line starter
• Micronic Air Inlet Filter
• Hour Meter
• 2 Large Stainless Steel Intercoolers
• Large Stainless Steel Aftercooler
• 3 Interstage Safety Valves
• Moisture Separator after 2nd Stage
• 13,000 @ 80F - 20,020 @ 68F CF CGA Grade E Filtration
• Pressure maintaining & non return valve
• Automatic Stop
• Automatic Condensate Drains with manual backups
• Condensate collector reservoir
• Interstage Gauges
• Emergency Stop Button
• Low Oil Level Shutdown Switch with Alarm
• High Temperature Shutdown Switch with Alarm

Model	Drive	Working Pressure PSI	Capacity	HP	Speed Rotation (rpm)	Dimensions (in)			Weight (lb)
			CFM			L	W	H
AC94590-HE1	1phase motor	5000	9	7.5	1100	51	32	32	500
AC94590-HE3	3phase motor	5000	9	7.5	1100	51	32	32	500
