Elbow 4” Straight Gate Valve with Adjustable Pressure Relief (Storz x Storz Part Time Swivel)

Elbow 4” Straight Gate Valve with Adjustable Pressure Relief (Storz x Storz Part Time Swivel)

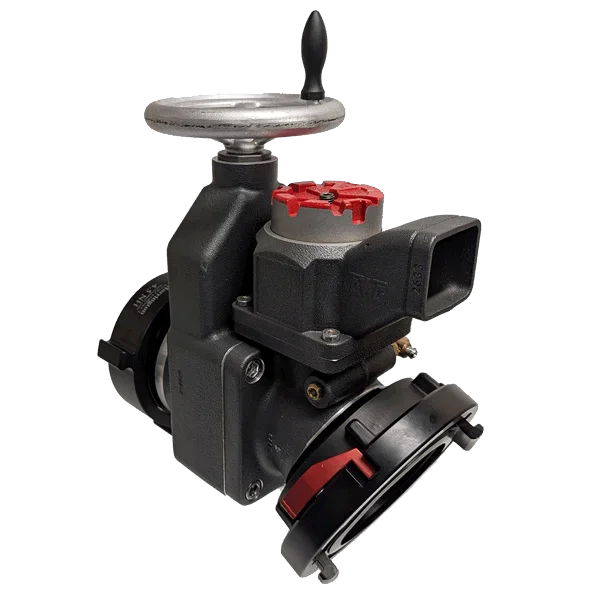

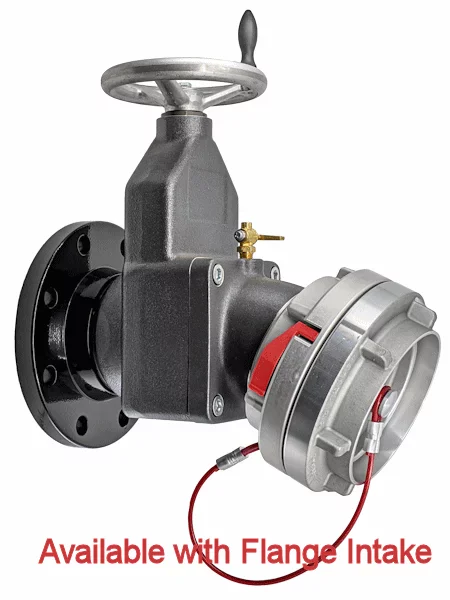

This LDH hydrant gate valve has the following features: slow open/close, a 25 degree elbow, and low friction loss due to a high flow waterway design.

The light weight gate valve has a non rising stem, an air bleeder valve, a field adjustable pressure relief valve, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz or NST connections.

Friction Loss at 1000 GPM: 0.8 PSI.

Dimensions: L: 12.5" W: 7" H: 15"

Weight: 24 lbs

Available Models:

H810-40-40ST	4" Gate valve w/250-S RV 25° elbow 4" Storz lock x 4" Storz lock Part Time Swivel
H810-50-50ST	4" Gate valve w/250-S RV 25° elbow 5" Storz lock x 5" Storz lock Part Time Swivel
