Command Light Traffic Flow Boards

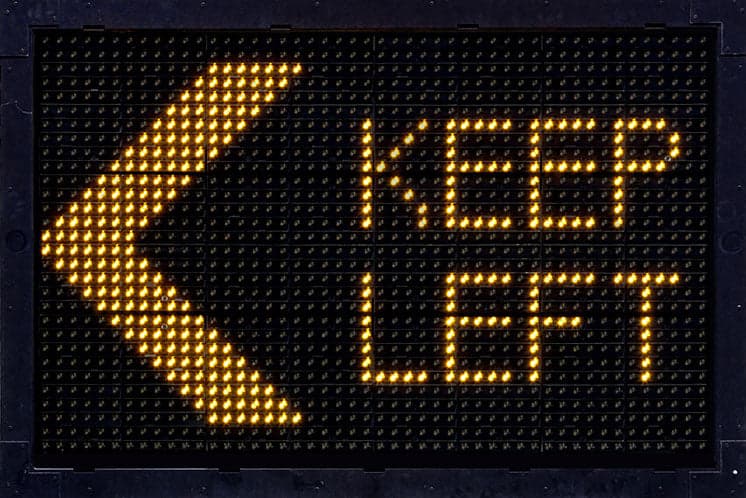

With rotational capabilities and multiple arrow patterns, Command Light’s Traffic Flow Boards improve on-scene visibility and responder safety. Available in eight different models (based on deployment and traffic pattern), these units conserve space when stowed, while the versatile mounting system gives crews the ability to select various boards to conform to department requirements. Each model comes with standard rotation, giving crews the ability to position traffic advisory arrows toward traffic to maximize effectiveness during blocking modes.
|
DC
|
MOVEMENT
|
TRAFFIC PATTERN
|
POWER REQUIREMENTS
|
HXWXD (NESTED)
|
HXWXD (UPRIGHT)
|
Weight |
|---|---|---|---|---|---|---|
| TFB-V7 | Vertical pop-up, recessed in apparatus | Greatest variety of traffic patterns | 12V DC - 19 amps | 43" x 64" x 13" 1,090 mm x 1,625 mm x 330 mm |
75" x 64" x 13" 1,905 mm x 1,625 mm x 330 mm |
220 lbs 100 kg |
| TFB-H7 | Horizontal Fold-down design | Greatest variety of traffic patterns | 12V DC - 28 amps | 16" x 60" x 46" 405 mm x 1,525 mm x 1,170 mm |
44" x 60" x 66" 1,120 mm x 1,525 mm x 1,675 mm |
150 lbs 68 kg |
| TFB-V5 | Vertical pop-up, recessed in apparatus | Essential traffic patterns | 12V DC - 17 amps | 28" x 44" x 13" 710 mm x 1,120 mm x 330 mm |
43" x 44" x 13" 1,090 mm x 1,120 mm x 330 mm |
150 lbs 68 kg |
| TFB-H5 | Horizontal Fold-down design | Essential traffic patterns | 12V DC - 17 amps | 8" x 48" x 40" 205 mm x 1,220 mm x 1,105 mm |
52" x 70" x 40" 1,320 mm x 1,780 mm x 1,015 mm |
80 lbs 36 kg |
| TFB-CL5 | Fold-down design, mounted to a CL Series tower | Essential traffic patterns | 12V DC - 10 amps + tower requirements |
Variable based on tower selection | Variable based on tower selection |
28 lbs 13kg + tower |
| TFB-SL3 | Fold-down design, mounted to a Shadow Series tower | Directional light bar | 12V DC - 5 amps + tower requirements |
Variable based on tower selection | Variable based on tower selection |
14 lbs 6kg + tower |
| TFB-HM2 | Horizontal Fold-down, ±45º rotation design | 2-lines of text or arrows | 12V DC - 27 amps 325W |
16" x 73" x 52" 405mm x 1,855mm x 1,320mm |
50" x 75" x 61" 1,270mm x 1,905mm x 1,550mm |
220 lbs 100 kg |
| TFB-HM3 | Horizontal Fold-down, ±45º rotation design | 3-lines of text or arrows | 12V DC - 38 amps 450W |
16" x 73" x 66" 405mm x 1,855mm x 1,675mm |
64" x 75" x 61" 1,625mm x 1,905mm x 1,550mm |
240 lbs 110 kg |
Original: $2,400.95
-65%$2,400.95
$840.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
With rotational capabilities and multiple arrow patterns, Command Light’s Traffic Flow Boards improve on-scene visibility and responder safety. Available in eight different models (based on deployment and traffic pattern), these units conserve space when stowed, while the versatile mounting system gives crews the ability to select various boards to conform to department requirements. Each model comes with standard rotation, giving crews the ability to position traffic advisory arrows toward traffic to maximize effectiveness during blocking modes.
|
