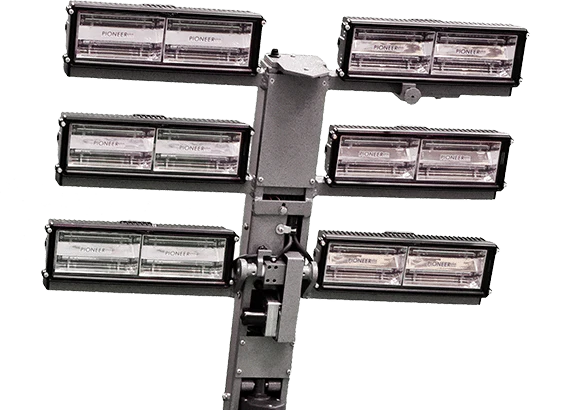

Command Light KL SERIES 6 Head Light Tower DC

Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.

LIGHTING OPTIONS:

• Akron Revel SL 110W
• FireTech Helios 60W
• Whelen Pioneer Plus PCH1 75W

LIGHTING	POWER REQUIREMENTS	OUTPUT (PER LIGHT)	TOTAL OUTPUT	HxWxD (NESTED)	HxWxD (UPRIGHT)	WEIGHT
Akron Revel SL 110W	12V DC – 80 amps 960W	14,000 lumens	84,000 lumens	12" x 47" x 23" 305 mm x 1,195 mm x 585 mm	87.5" x 52" x 23" 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg
FireTech Helios 60W	12V DC – 55 amps 660W	14,000 lumens	84,000 lumens	12" x 47" x 28" 305 mm x 1,195 mm x 710 mm	87.5" x 52 " x 28" 2,225 mm x 1,320 mm x 710 mm	165 lbs 75 kg
Whelen Pioneer Plus PCH1 75W	12V DC – 63 amps 750W	10,130 lumens	60,780 lumens	12" x 47" x 23" 305 mm x 1,195 mm x 585 mm	87.5" x 52" x 23" 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg
