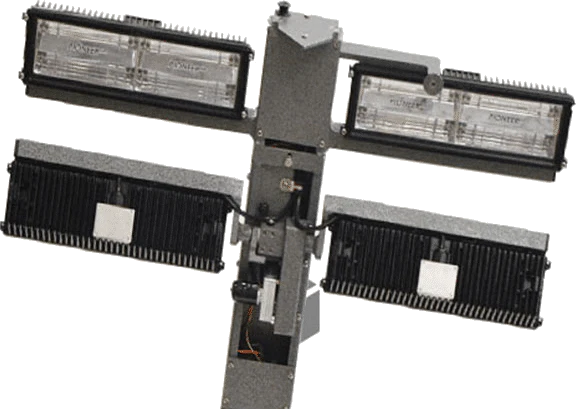

Command Light KL SERIES 4 Head Light Tower DC

Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.

LIGHTING OPTIONS:

• FRC Radiant Command 120W
• FRC Spectra Max 230W
• Lightforce HTX LED/HID 150W
• Whelen Pioneer Plus PFH2 - 150W

LIGHTING	POWER REQUIREMENTS	OUTPUT (PER LIGHT)	TOTAL OUTPUT	HxWxD (NESTED)	HxWxD (UPRIGHT)	WEIGHT
FRC Radiant Command 120W	12V DC – 65 amps 780W	17,000 lumens	68,000 lumens	12” x 47” x 29” 305 mm x 1,195 mm x 735 mm	87.5” x 52" x 29” 2,225 mm x 1,320 mm x 735 mm	165 lbs 75 kg
FRC Spectra Max 230W	12V DC – 100 amps 1,220W	28,000 lumens	112,000 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52" x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
Lightforce HTX LED/HID 150W	12V DC – 75 amps 900W	13,500 lumens	54,000 lumens	14” x 47” x 31” 355 mm x 1,195 mm x 785 mm	87.5” x 52" x 31” 2,225 mm x 1,320 mm x 785 mm	165 lbs 75 kg
Whelen Pioneer Plus PFH2 - 150W	12V DC – 75 amps 900W	20,261 lumens	81,044 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52" x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
