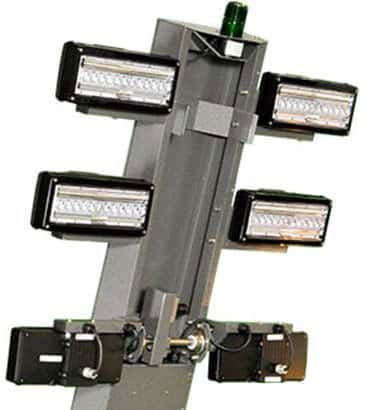

Command Light CL SERIES 4 Head Light Tower

The CL Series lineup features Command Light’s largest light towers for sale with a reach up to 11’ from its base. These units are designed for large apparatus and are manufactured using aircraft-grade aluminum alloy to reduce weight while adding strength, making them the strongest mobile light towers on the market. These towers can rotate 360 degrees and tilt, raise and lower with ease to mitigate shadows in all types of situations. Unlike truck-mounted perimeter LEDs, this gives crews the ability to direct all of the usable light. These towers can even be angled to overhang the vehicle to provide operable light near the side of the apparatus.

LIGHTING OPTIONS:

• FireTech SL-X-15 185W

• FRC Radiant Command 120W
• FRC Spectra Max 335W
• Whelen Pioneer Plus PFP2 150W

LIGHTING	POWER REQUIREMENTS	OUTPUT (PER LIGHT)	TOTAL OUTPUT	HxWxD (NESTED)	HxWxD (UPRIGHT)	WEIGHT
FireTech SL-X-15 185W	12V DC - 87 amps 1,040W	28,000 lumens	112,000 lumens	12" x 74" x 43" 305 mm x 1,880 mm x 1,095 mm	131" x 79 " x 43" 3,330 mm x 2,010 mm x 1,095 mm	325 lbs 147 kg
FRC Radiant Command 120W	12V DC - 98 amps 780W	17,000 lumens	68,000 lumens	12" x 74" x 40" 305 mm x 1,880 mm x 1,015 mm	131" x 79 " x 40" 3,330 mm x 2,010 mm x 1,015 mm	305 lbs 139 kg
FRC Spectra Max 335W	12V DC - 100 amps 1,220W	28,000 lumens	112,000 lumens	12" x 74" x 43" 305 mm x 1,880 mm x 1,095 mm	131" x 79" x 43" 3,330 mm x 2,010 mm x 1,095 mm	305 lbs 139 kg
Whelen Pioneer Plus PFP2 150W	12V DC - 75 amps 900W	20,261 lumens	81,044 lumens	12" x 74" x 43" 305 mm x 1,880 mm x 1,095 mm	131" x 79" x 43" 3,330 mm x 2,010 mm x 1,095 mm	305 lbs 139 kg
