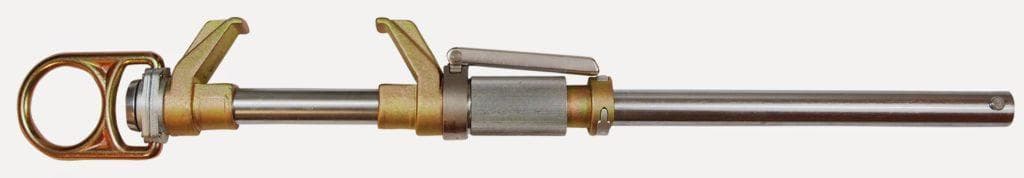

CMC Vertical Fixed Beam Anchor

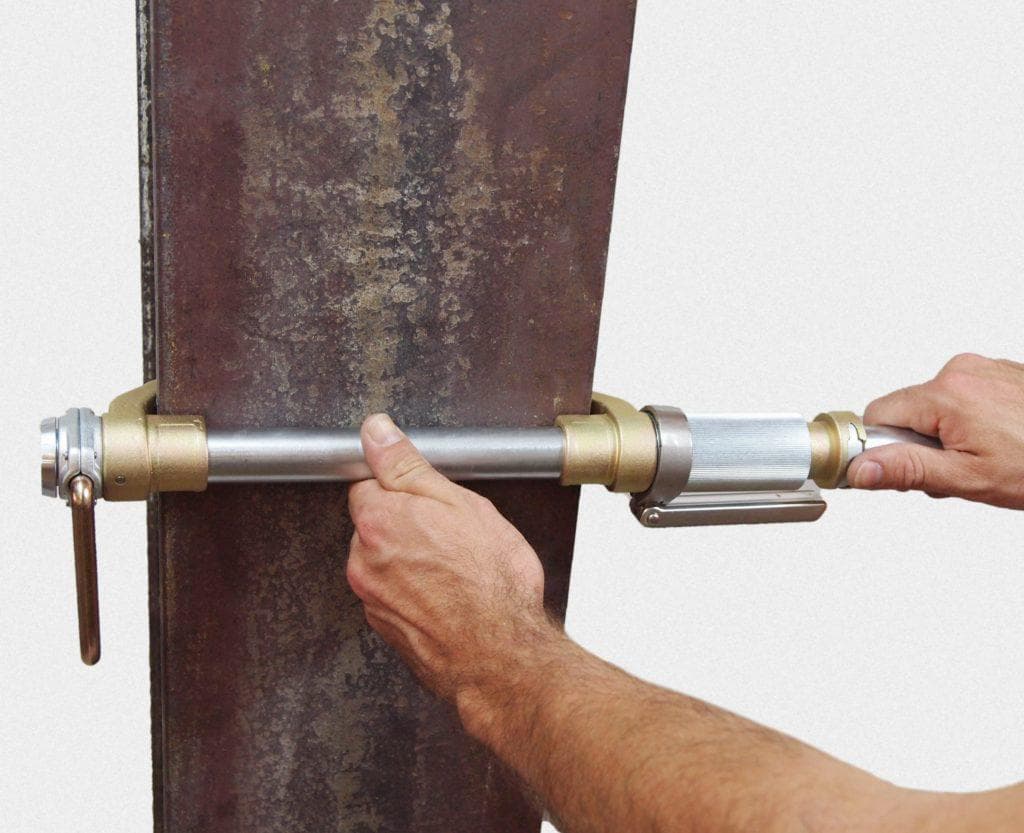

Easy to operate and designed to clamp onto a vertical or horizontal I-beam to create a fixed anchor point.

Features:

• Safe and stationary connection, ideal for vertical I-beams
• Beam flange ranges from 4 inches to 14 inches wide
• Durable, lightweight aluminum construction
• Turn dial and cam adjustment for easy installation
• Meets ANSI and OSHA standards
  • ANSI Z359.18-2017
  • Type A, OSHA Standards
• Static Tensile Strength: 5,000-lbf (22.2 kN)
• Maximum Capacity 310lbs when used as a single point anchorage
• Beam Flange Width Range: 4″-14″
• Beam Flange Thickness: .25″-1.25″
• Weight: 6.8lbs

Dimensions:

• Approx. Product Length (in) 27.5
• Approx. Product Width (in) 3.6
• Approx. Product Weight (lb) 6.1
• Approx. Shipping Length (in) 27.5
• Approx. Shipping Width (in) 3.6
• Approx. Shipping Height (in) 3.6

Components:

• Zinc Plated Steel Swivel D-Ring
• Zinc Plated Steel Support Bar
• Zinc Plated Steel Flange Hooks
• Stainless Steel D-Ring Mount
