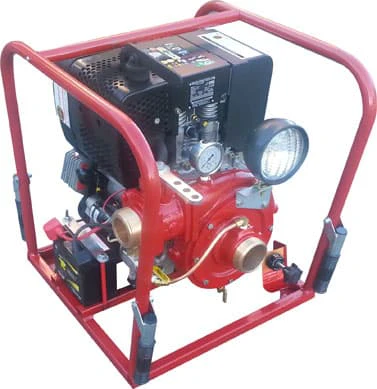

CET 10hp High Volume Diesel Powered Pump

ENGINE SPECIFICATIONS

• 1B40 Hatz air cooled engine
• Single-cylinder 4-stroke Diesel engine
• EPA TIER IV and CARB TIER IV compliant
• 12V electric start with recoil & recoil start as backup
• 1.32 gallons (5l) integrated fuel tank

INCLUDED ACCESSORIES

• Swivel spotlight
• 14 Amps alternator
• Pressure gauge
• Vernier throttle
• 12-V battery

PUMP UNIT SPECIFICATIONS

• Direct drive C.E.T.single stage centrifugal pump
• Pump body made from resistant aluminum alloy
• Bronze impeller
• Mechanical shaft seal
• Exhaust priming system,guaranteed up to 20’ (6 meter) lift
• One 2 1/2” (65 mm) delivery outlet with Fire Type swing-out valve
• One 2 1/2'' (65 mm) suction inlet
• Dimensions: Length: 23 3/8” (592mm);
• Width: 20 1 ⁄2” (521mm); Height: 23” (584mm)
• Weight: 185 lbs (84 kg)

PERFORMANCE
