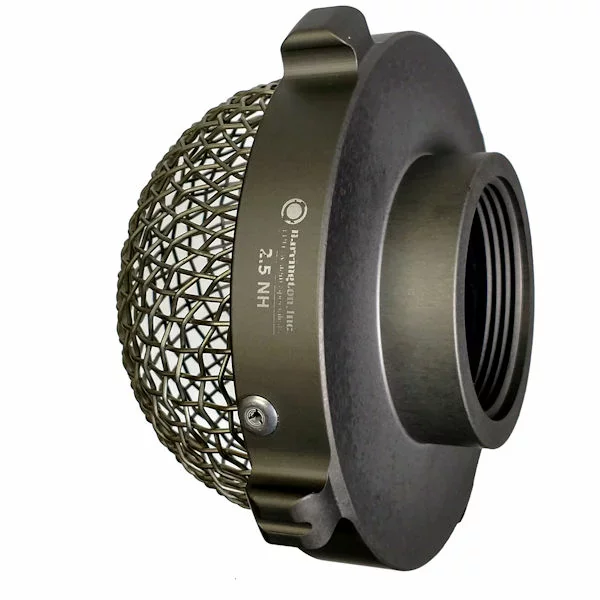

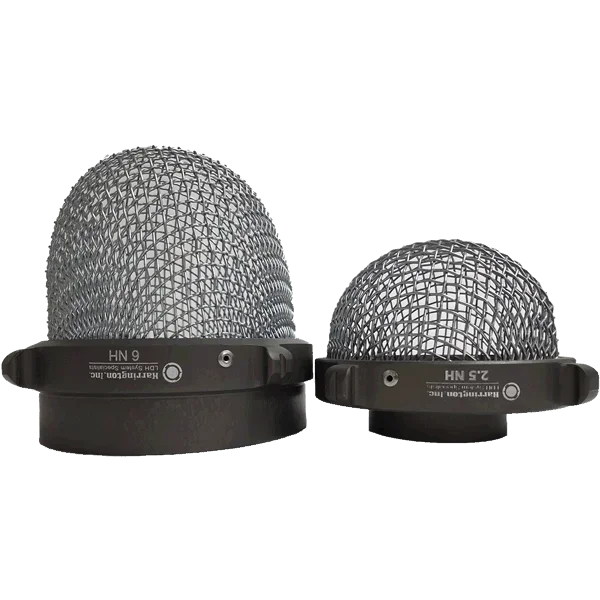

Basket Suction Strainer/Diffuser

Lightweight T6061-T6 aluminum body anodized to Military specification Type 3 for durability with rigid stainless steel mesh screen. Basket strainers provide the best performance when drafting, while reducing debris from entering a pump and provides full flow into the suction hose. This same device can be used to diffuse water when testing hydrants to diffuse the flow safely.

Notes:

• Available in female sizes 2.5” through 6”
• NH thread
• Rocker lug for easy secure tightening
• Includes flat face gasket

When ordering specify quantity, size, and thread type.

Weights and Dimensions:

Size	OAL	Weight	Dia.
2.5″	5-5/16″	2.9	6-7/8″
3″	5-7/16″	3.1	6-7/8″
3.5″	5-7/16″	3.2	6-7/8″
4″	5-9/16″	3.3	6-7/8″
4.5″	5-9/16″	3.4	6-7/8″
5″	5-11/16″	3.5	6-7/8″
6″	7-15/16″	4.8	8″
Weight is rounded to nearest 1/10th of a lb.



Available Models:

HWMBS-25NH	2.5” NH Female Basket Suction Strainer-Diffuser
HWMBS-30NH	3” NH Female Basket Suction Strainer-Diffuser
HWMBS-35NH	3.5” NH Female Basket Suction Strainer-Diffuser
HWMBS-40NH	4” NH Female Basket Suction Strainer-Diffuser
HWMBS-45NH	4.5” NH Female Basket Suction Strainer-Diffuser
HWMBS-50NH	5” NH Female Basket Suction Strainer-Diffuser
HWMBS-60NH	6” NH Female Basket Suction Strainer-Diffuser
