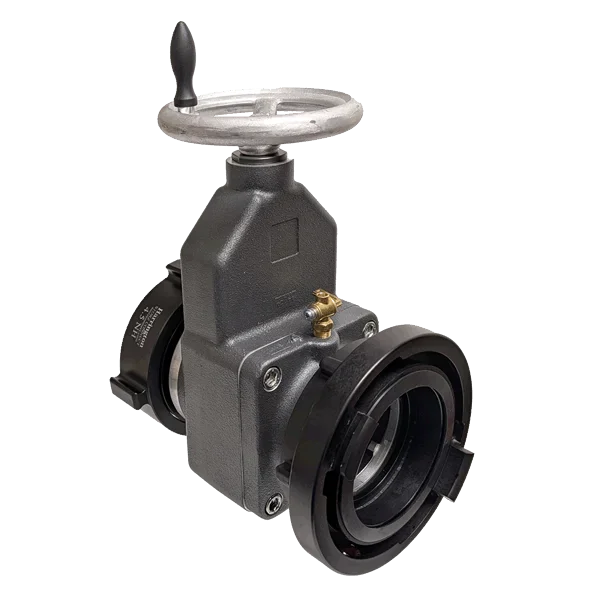

4” Straight Gate Valves with Flange

4” Straight Gate Valves with Flange

This LDH hydrant gate valve provides low friction loss due to a high flow design. It is excellent for hydrant discharge control, due to providing a slow open/close mechanism.

The light weight gate valve has an air bleeder valve, a non-rising stem, an anodized gate, and a stainless steel spindle.

Dimensions: H: 14” L: 10” W: 6”
Weight: 21 lbs
Friction loss at 1000 GPM: 0.8 PSI

Available Models:

FF Flanges
H800-40-40FF/CAP	4" Straight Gate Valve - 4" Flat Face Flange x 4" Storz w/lok cap/cable
H800-50-40FF/CAP	4" Straight Gate Valve - 4" Flat Face Flange x 5" Storz w/lok cap/cable
H800-50-60FF/CAP	4" Straight Gate Valve - 6" Flat Face Flange x 5" Storz w/lok cap/cable
RF Flanges
H800-40-40RF/CAP	4" Straight Gate Valve - 4" Raised Face Flange x 4" Storz w/lok cap/cable
H800-50-40RF/CAP	4" Straight Gate Valve - 4" Raised Face Flange x 5" Storz w/lok cap/cable
H800-50-60RF/CAP	4" Straight Gate Valve - 6" Raised Face Flange x 5" Storz w/lok cap/cable
